Logger Tag

A complete journey record, even through coverage gaps

Captures location, temperature and humidity. In coverage, data streams to Blecon Track in real time. Out of coverage, the Tag stores data and syncs on return.

Get eval kit
Talk to us

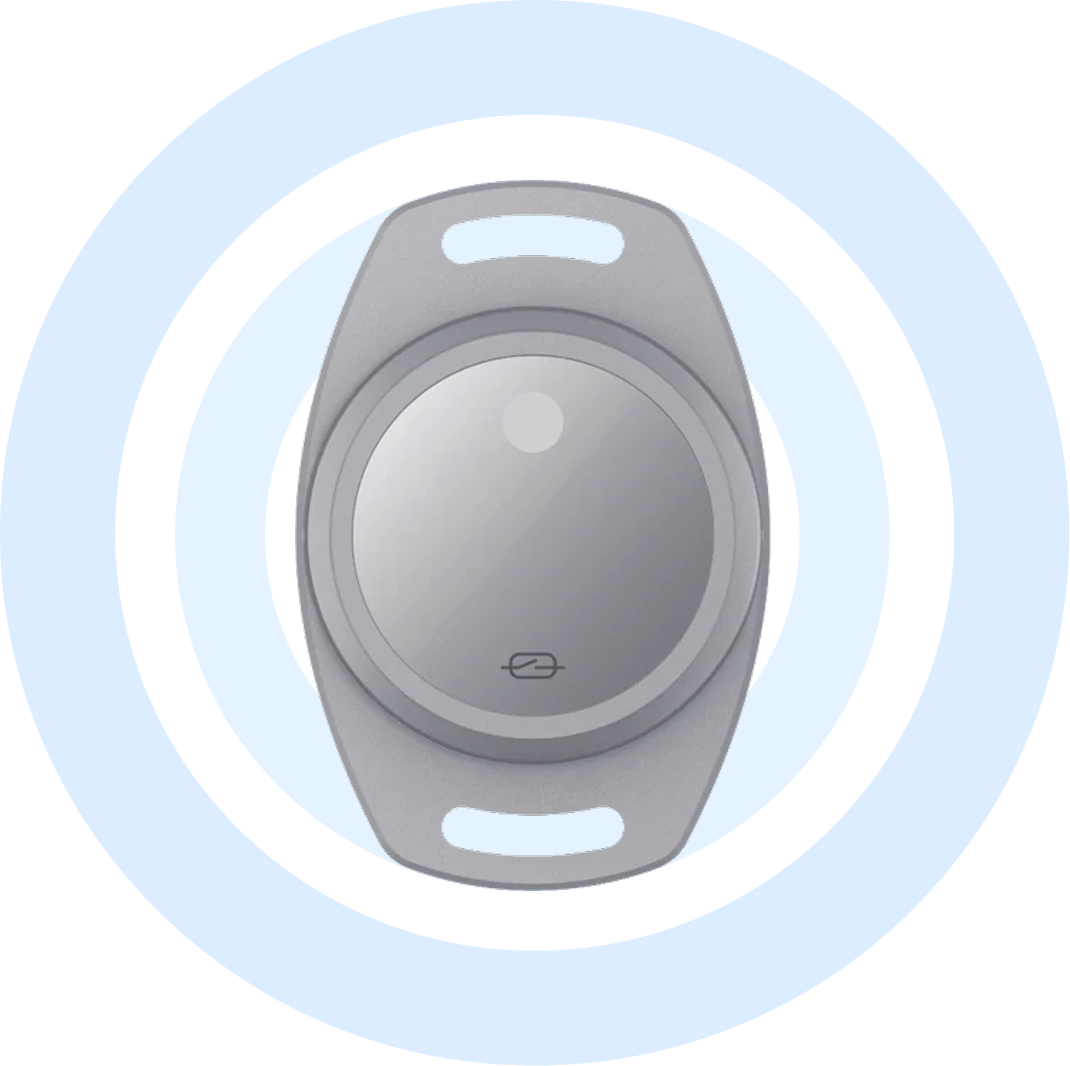

Blecon Logger Tag (L02S) - BLE asset tag for cold chain monitoring and offline data capture

Logger Tag in the Blecon system

Logger Tag is the most capable Blecon Tag, capturing location, condition data and storing the full record on the Tag when out of Hotspot coverage. Like every Blecon Tag, it broadcasts over Bluetooth Low Energy to Hotspots, which relay the data to Blecon Network and Blecon Track. The system around it is the same as for any Blecon Tag. Logger Tag captures more and works through coverage gaps.

→ For a full system overview, see how it works.

Continuous capture, even through coverage gaps

Logger Tag captures location, temperature and humidity continuously throughout the journey. What happens to the data depends on coverage.

In Coverage

Data streams to Blecon Track in real time. The live map updates, rules evaluate the readings and alerts fire when conditions drift out of spec.

Out of coverage

Logger Tag stores readings on the tag itself, timestamped against Blecon Network's global time. Internal storage holds the complete journey record.

Back in coverage



The full record uploads automatically. The journey reconstructs across in-coverage and offline sections. Complete audit trail, every shipment.

Blecon Logger Tag

The L02S is Blecon's Logger Tag, a reusable BLE asset tag with offline data logging, built for cold chain monitoring, long-haul freight and journeys through coverage gaps.

Form factor
Compact polycarbonate enclosure, 69.9 × 46.7 × 18mm. Mounts with double-sided adhesive, screws or zip-tie. Fits unobtrusively on or in pallets, cages, totes, boxes and equipment.

Lifetime
2-3 year service lifetime across multiple journeys.

Sensors and onboard storage
Temperature and humidity calibrated to ±0.5°C and ±2% RH. Barometric pressure, 3-axis accelerometer, ambient light and Hall effect sensors for additional context. 16 Mbit of internal storage holds the complete journey record.

Built for industrial deployment
IP67-rated for dust and water resistance. Operating range -20°C to 60°C. Certified to FCC, CE, RoHS and WEEE.

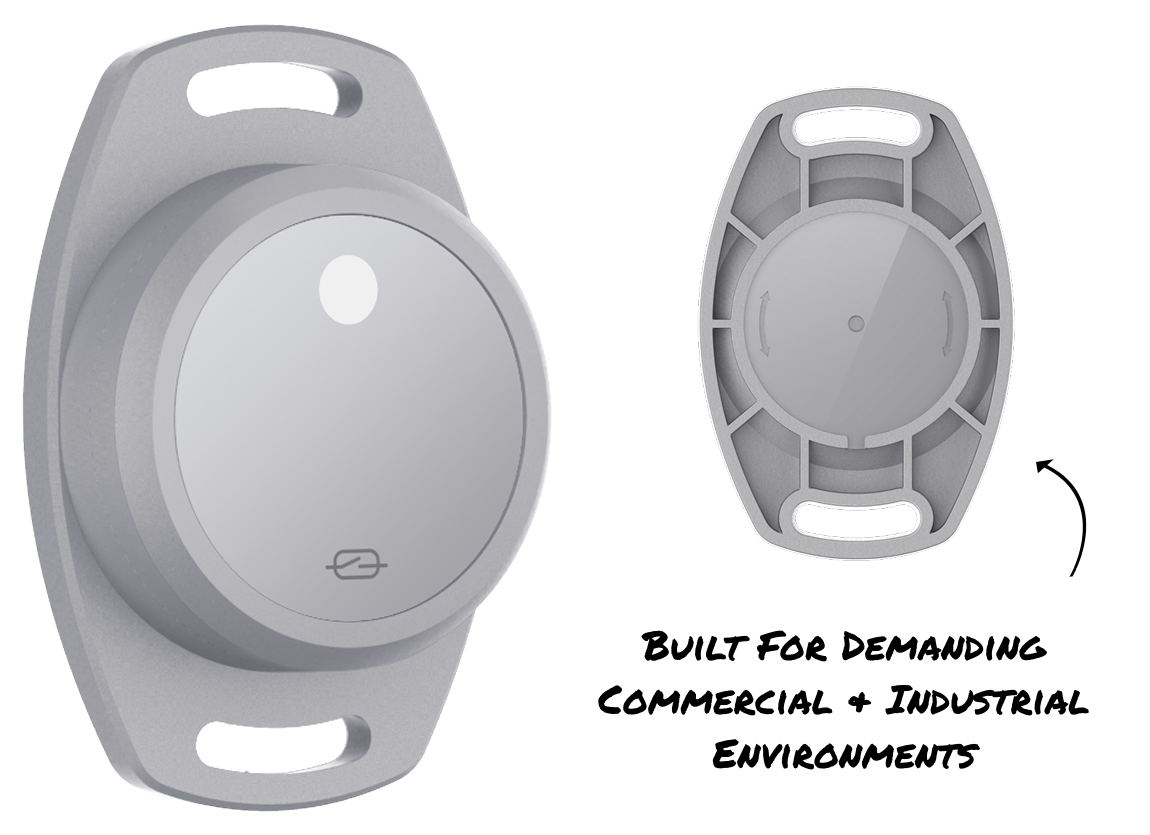

Blecon Logger Tag (L02S) hard tag with temperature and humidity sensors and offline data logging

Where Logger Tags fit

Logger Tag is the right choice when the journey goes through coverage gaps and the audit trail must be complete.

Cold chain monitoring
Continuous temperature and humidity through every leg of the journey, from origin to delivery. Real-time alerts when in coverage; complete record when offline. The compliance file builds itself, whether shipments stay in coverage or not.

Pharma and regulated supply chains
GxP, GDP and similar regulated environments where the temperature record must hold up to audit. Offline data is timestamped against Blecon Network's global time so the audit trail reconstructs accurately across in-coverage and offline sections.

High-value goods in transit
Aerospace components, sensitive electronics or any cargo that travels beyond fixed coverage. Continuous capture means disputes have evidence and lane reviews have data to work from.
Cold chain shipment monitored with Blecon Logger Tag for continuous temperature tracking

Custom requirements

For operations that need additional sensors, alerts on the Tag, custom form factors, longer service lifetimes or specific certifications, talk to us.

→ Talk to us about custom hardware

Blecon is designed for Builders

Blecon provides secure Hotspot and Network infrastructure services, supporting development with off-the-shelf or custom & embedded Beacons while giving you full control over where your data lands.

Blecon integrates effortlessly with any cloud service. Whether it’s a dedicated data platform, your backend on AWS, Azure, Google Cloud, or any other infrastructure you choose, you remain in full control of your data, infrastructure, and business logic.

Order Evaluation Kit

Run a pilot in days, not months

An eval kit gets you everything you need to run a pilot. Tags, the platform and Blecon Agent for your devices.
